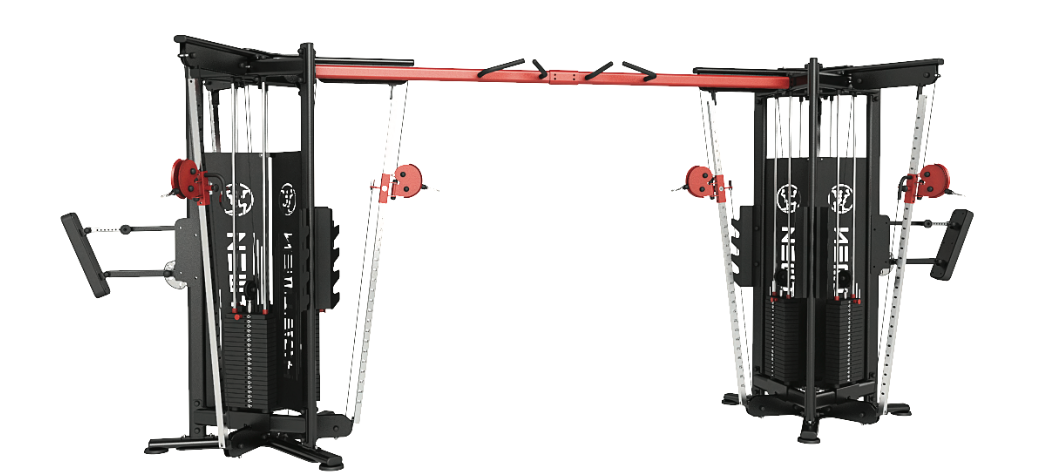

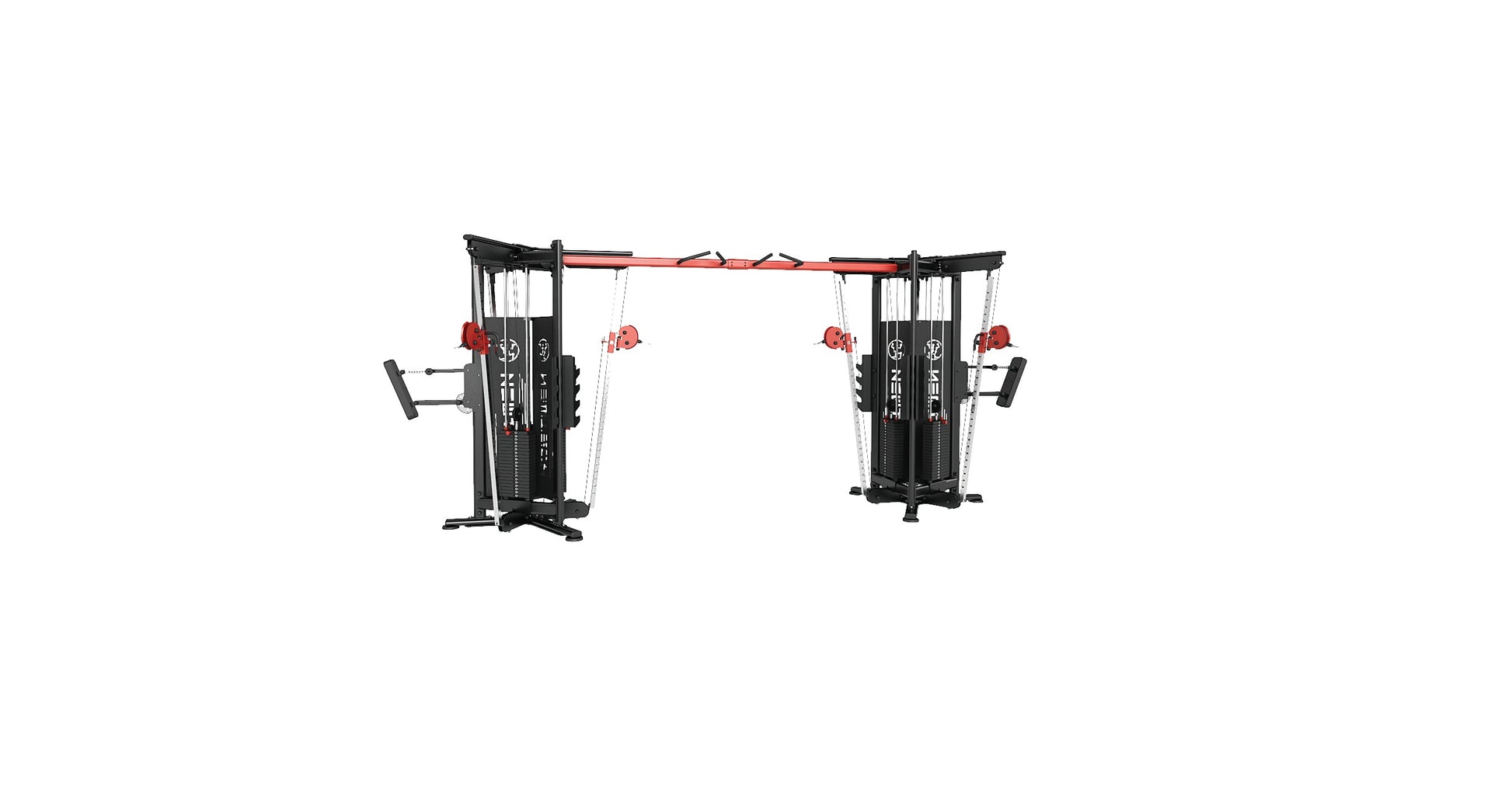

Tri Cable 6 Station

The Newtech Tri Cable 6 Station is engineered as a multi-directional, multi-user functional training system built to deliver precision cable work, unmatched versatility, and ultra-smooth biomechanics. With six independent training stations integrated into a single footprint, this unit replaces multiple standalone machines while providing a broader range of motion, finer adjustability, and superior load feel compared to standard functional trainers. Every component—from the high-density rotational pulleys to the adjustable back pad assembly—is designed to expand movement options and accommodate lifters of all sizes, making this system ideal for commercial gyms, athletic performance facilities, and high-volume training environments.

At the center of the system is Newtech’s signature adjustable back-pad arm. This component allows lifters to brace, stabilize, or angle their body against the pad to target muscle groups with greater isolation and more consistent tension throughout the movement. Combined with dual independent cable stacks on each side, 29 vertical height adjustments, and multiple handle placements, the Tri Cable 6 Station enables everything from heavy compound work to highly precise isolation patterns with smooth, uninterrupted resistance.

Back Pad System – Multi-Angle and Multi-Height Adjustability

The adjustable back-pad station is the defining element of the Tri Cable 6 Station, allowing users to create biomechanically optimized angles for chest, shoulders, arms, traps, and even legs.

Angle Adjustments (1–10):

• Positions 1–3: Slight backward lean / chest-to-ceiling orientation. Ideal for pec fly variations, low-to-high cable work, and long-head biceps curls where an extended stretch is required.
• Position 4: Pad becomes fully perpendicular to the ground, creating a straight, neutral bracing surface.
• Positions 5–9: Gradual forward tilt for mid-range bracing, oblique patterns, chest-supported pulling, and anti-rotation work.
• Position 10: Fully angled downward for extreme high-to-low flies, high-to-low biceps curls, and any movement that benefits from maximum overhead stretch and downward line of pull.

Height Adjustments (1–5):
Sized to fit users from 4 ft to 6 ft+, allowing lifters to align the pad precisely with the sternum, ribcage, or abdomen depending on the movement.

Expanded Movement Options:

• Chest-supported rear delt flys
• Dual-cable trap shrugs (with chest braced into the pad)
• Long-range pec flys with controlled stretch
• Core rotations, anti-rotations, and single-arm press patterns
• Leg raises, glute kickbacks, and lower-body accessory work
  The back-pad assembly transforms the Tri Cable 6 Station into a braced training platform that greatly increases stability, tension consistency, and reproducibility of results.

Cable System – Ultra-Smooth, High-Precision Resistance

The unit includes six independent cable points, each built with commercial-grade pulleys and extra-durable coated cables designed to perform under heavy daily use.

Key Specifications:

• 125 kg weight stack per column (customizable upon request)
• 29 height adjustments, spaced approximately 2 inches apart (nearly double the industry standard)
• Full 360° rotational lower pulleys for unrestricted leg, core, and athletic patterns
• Super-smooth cable travel engineered to eliminate sticking, lag, or tension drop-off
• Optimized for both low-velocity hypertrophy work and high-velocity athletic movements

The increased granularity of height adjustments allows lifters to fine-tune angles for biomechanics that would be impossible on most standard cable stations.

Multi-Grip Pull-Up System

Integrated into the crossover bridge are two complete sets of pull-up grips, allowing for:

• Overhand
• Underhand
• Neutral-grip pull-ups
  This enables multiple users to train simultaneously while providing grip variations that emphasize lats, upper back, arms, and forearm engagement.

Functional Storage and Durability

• 4 integrated attachment holders for quick, organized access to handles, ropes, bars, and cuffs
• Heavy-gauge steel frame engineered for commercial durability
• Reinforced welds and premium bearings built for continuous, high-traffic use
• Modern Newtech black-on-black aesthetic with laser-cut side panels

Versatility – Six Stations in a Single Footprint

The Tri Cable 6 Station consolidates multiple machines into one comprehensive system:

1. Left adjustable cable column
2. Right adjustable cable column
3. Left rotating low-pulley station
4. Right rotating low-pulley station
5. Integrated multi-grip pull-up system
6. Adjustable back-pad bracing station

This layout supports simultaneous training for multiple users and dramatically increases session capacity in commercial environments.

Ideal For:

• Commercial gyms and performance centers
• Facilities aiming to maximize space efficiency
• Bodybuilding and physique training
• Strength and functional patterns requiring precise mechanical alignment
• Small group training or multi-user settings

N. NT-C-TC6ST

Size: W5830 × L1600 × H2320 (mm)
